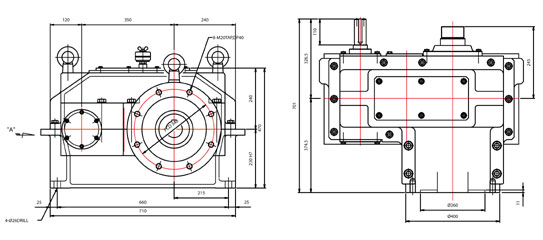

GEAR
SPECIFICATION |
DRIVEN
MOTOR |
55Kw * 1750 RPM |
OUTPUT
SHAFT SPEED |
105 RPM |
REDUCTION
RATIO |
1 / 15.06 |
LUBRICANT |
ISO VG 220 ,
50 LITER |
WEIGHT |
850 Kg |
NAME |
STEP |
1 STEP
GEAR |
2 STEP
GEAR |
PART |
PINION |
GEAR |
PINION |
GEAR |
MODULE |
3.5` |
4.5 |
NO
DF TEETH |
17 |
72 |
18 |
64 |
RATIO |
1 / 3.4 |
1 / 2.904 |
RPESSURE
ANGLE |
20 ° |
20 ° |
HELIX
ANGLE |
(R) 10
° (L) |
(R) 10
° (L) |
STANDARD
P.C.D |
60.41 |
255.88 |
82.249 |
292.44 |
WIDTH
OF TEETH |
80 |
60 |
105 |
95 |
HARDNESS
OF TEETH |
HRc60±2 |
HRc58±2 |
HRc60±2 |
HRc58±2 |
MATERIAL |
SCM21,
SNCM21 |
HEAT
TREATMENT |
CARBURIZING |
GRADE |
JIS 2 |
|
|
| |
|
|
 |
|
