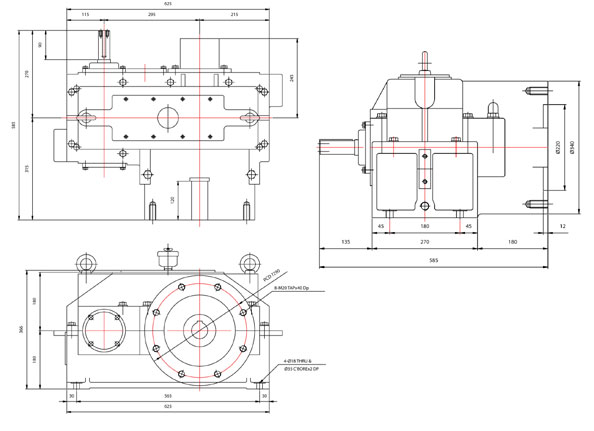

GEAR
SPECIFICATION |
DRIVEN
MOTOR |
45 Kw x 1750
RPM |
OUTPUT
SHAFT SPEED |
110 RPM |
REDUCTION
RATIO |
1/10.031 |
LUBRICANT |
ISO VG 220.25
LITER |
WEIGHT |
400 Kg |
NAME |
STEP |
1 STEP
GEAR |
2 STEP
GEAR |
PART |
PINION |
GEAR |
PINION |
GEAR |
MODULE |
3 |
4.5 |
NO
DF TEETH |
19 |
60 |
17 |
54 |
RATIO |
1/3.157 |
1/3.176 |
RPESSURE
ANGLE |
20 ° |
20 ° |
HELIX
ANGLE |
(R) 15
° (L) |
(R) 13
° (L) |
STANDARD
P.C.D |
59.011 |
186.350 |
78.512 |
249.392 |
WIDTH
OF TEETH |
65 |
60 |
85 |
80 |
HARDNESS
OF TEETH |
HRc60±2 |
HRc58±2 |
HRc60±2 |
HRc58±2 |
MATERIAL |
SNCM21 |
SNCM21 |
SNCM21 |
SNCM21 |
HEAT
TREATMENT |
CARBURIZING |
CARBURIZING |
GRADE |
JIS 2
|
JIS 2 |
|
|
| |
|
|
 |
|
