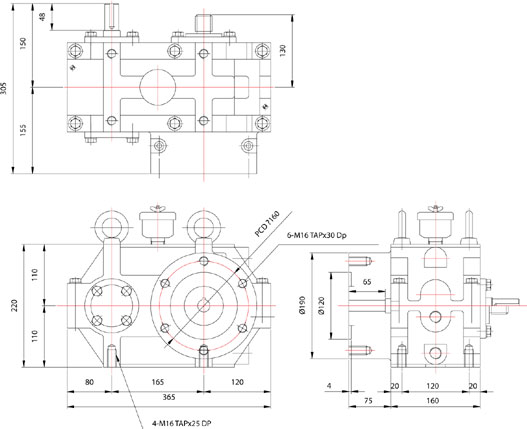

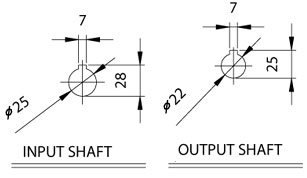

GEAR
SPECIFICATION |
| DRIVEN MOTOR
|
5.5 Kw x 1750 RPM
|
OUTPUT
SHAFT SPEED |
80 RPM |
REDUCTION
RATIO |
1/8.889 |
LUBRICANT |
OMALA 320.6 LITER
|
WEIGHT |
40 Kg |
NAME |
STEP |
1 STEP GEAR
|
2 STEP GEAR
|
PART |
PINION |
GEAR |
PINION |
GEAR |
MODULE |
2` |
2.5 |
NO
DF TEETH |
17 |
48 |
17 |
54 |
RATIO |
1/2.823 |
1/3.176 |
RPESSURE
ANGLE |
20 ° |
20 ° |
HELIX
ANGLE |
(R) 16 °
(L) |
(R) 16 °
(L) |
STANDARD
P.C.D |
35.370 |
99.869 |
44.213 |
140.44 |
WIDTH
OF TEETH |
30 |
25 |
38 |
35 |
HARDNESS
OF TEETH |
HRc60±2 |
HRc58±2 |
HRc60±2 |
HRc58±2 |
MATERIAL |
SCM415 |
SCM415 |
SCM415 |
SCM415 |
HEAT
TREATMENT |
CARBURIZING |
CARBURIZING |
GRADE |
JIS 2 |
JIS 2 |
|
|
| |
|
|
 |
|
