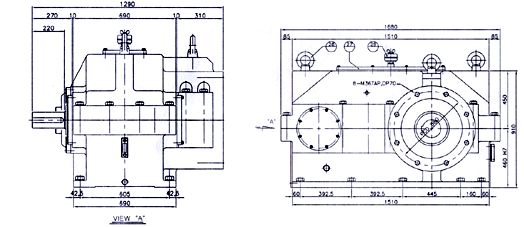

GEAR SPECIFICATION
DRIVEN MOTOR
225 Kw x 1750 RPM
OUTPUT SHAFT SPEED
105 RPM
REDUCTION RATIO
1/10.4318
LUBRICANT
ISO VG 220.50 LITER
WEIGHT
3200 Kg
NAME
STEP
1 STEP GEAR
2 STEP GEAR
PART
PINION
GEAR
PINION
GEAR
MODULE
7
10
NO DF TEETH
22
81
24
68
RATIO
1/3.68
1/2.834
RPESSURE ANGLE
20 °
20 °
HELIX ANGLE
(R) 15 ° (L)
(L) 15 ° (R)
STANDARD P.C.D
159.43
587
248.466
703.998
WIDTH OF TEETH
170
160
190
180
HARDNESS OF TEETH
HRc60±2
HRc58±2
HRc60±2
HRc58±2
MATERIAL
SNCM21
SNCM21
SNCM21
SNCM21
HEAT TREATMENT
CARBURIZING
CARBURIZING
GRADE
JIS 2
JIS 2
