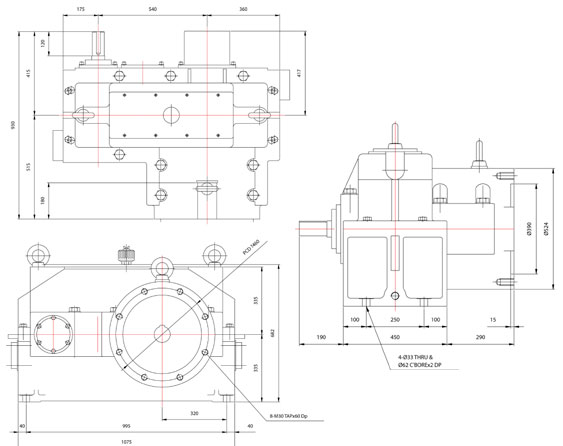

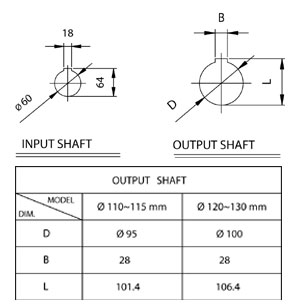

| GEAR
SPECIFICATION |
| DRIVEN
MOTOR |
132Kw
* 1750 RPM |
| OUTPUT
SHAFT SPEED |
92 RPM |
| REDUCTION
RATIO |
1 / 11.967 |
| LUBRICANT |
ISO VG
220. 60 LITER |
| WEIGHT |
1200
Kg |
|
NAME |
STEP |
1 STEP
GEAR |
2 STEP
GEAR |
| PART |
PINION |
GEAR |
PINION |
GEAR |
| MODULE |
3.75 |
6.5 |
| NO
DF TEETH |
22 |
89 |
24 |
71 |
| PRESSURE
ANGLE |
20 ˚
|
20 ˚ |
| HELIX
ANGLE |
(R) 15
˚ 30' (L) |
(R) 10
˚ (L) |
| RATIO |
1 / 4.045 |
1 / 2.958 |
| STANDARD
P.C.D |
85.614 |
346.346 |
158.407 |
468.619 |
| WIDTH
OF TEETH |
115 |
110 |
125 |
120 |
| HARDNESS
OF TEETH |
HRc60±2 |
HRc58±2 |
HRc60±2 |
HRc58±2 |
| MATERIAL |
SNCM21 |
| HEAT
TREATMENT |
CARBURIZING |
| GRADE |
JIS 2 |
|
|
| |
|
|
 |
|
