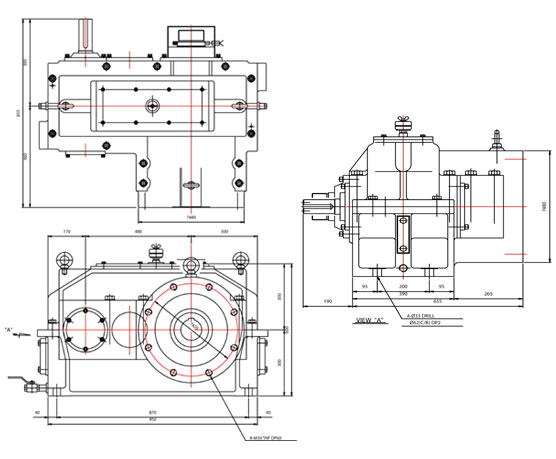

| GEAR
SPECIFICATION |
| DRIVEN
MOTOR |
90Kw
* 1750 RPM |
| OUTPUT
SHAFT SPEED |
105 RPM |
| REDUCTION
RATIO |
1 / 10.406 |
| LUBRICANT |
ISO VG
220. 50 LITER |
| WEIGHT |
1000
Kg |
|
NAME |
STEP |
1st GEAR |
2nd GEAR |
| PART |
PINION |
GEAR |
PINION |
GEAR |
| MODULE |
3.5 |
5.5 |
| NO
DF TEETH |
22 |
75 |
19 |
58 |
| PRESSURE
ANGLE |
15 ˚
|
10 ˚ |
| HELIX
ANGLE |
(R) 15
˚ (L) |
(R) 10
˚ (L) |
| RATIO |
1 / 3.4 |
1 / 3.05 |
| STANDARD
P.C.D |
79.716 |
271.760 |
106.112 |
323.921 |
| WIDTH
OF TEETH |
85 |
80 |
115 |
110 |
| HARDNESS
OF TEETH |
HRc60±2 |
HRc58±2 |
HRc60±2 |
HRc58±2 |
| MATERIAL |
SNCM21 |
| HEAT
TREATMENT |
CARBURIZING |
| GRADE |
JIS 2 |
|
|
| |
|
|
 |
|
